Yokohama Pneumatic Rubber Fenders Lightweight Net Type / Sling Type

Brand Name : DOOWIN MARINE

Model Number : D0.5~4.5m x L1~9m

Certification : CCS,BV,ABS,DNV,LR,CCS

Place of Origin : China

MOQ : 1pc

Price : USD$ 1000~12000$

Payment Terms : T/T

Supply Ability : 10pcs/per week

Delivery Time : 2~3 weeks

Packaging Details : Pallet or Plywooden Box

Product name : Light weight Design Yokohama Fender with Energy Absorption and Low Hull Pressure for Marine Protection

Color : Black

Material : Synthetic tire cord and rubber plies

Diameter : 0.5~ 4.5 m, or customized

Length : 1~9m, or customized

Warranty : 24 months

Type : Net type, Sling type

Packing : Pallet, iron frame,as requirement

Application : Protects ship during ship-to-ship operations or mooring at quay,Protect Boat

Chain net : Hot galvanized

Quality : Strong enough to maintain the internal air pressure

Lifespan : 7-10 years

Feature : Soft Reaction Force,Adaptable to The Tide,Against Shearing Force,Aging Resistance,Lower Mooring Forces

Initial Internal Pressure : 50Kpa, 80Kpa

Standard : ISO17357

Contact Now

Marine Dock Yokohama Pneumatic Rubber Fender for Marine Boat Accessory
Floating pneumatic rubber fenders, also known as Yokohama fenders, are constructed from synthetic-cord-reinforced rubber sheets with compressed air inside. This design enables them to float on water and serve as effective shock absorbers between ships (ship-to-ship) or between ships and berthing structures during docking operations. All Doowin Marine Yokohama-type floating pneumatic rubber fenders are manufactured and tested to fully comply with ISO 17357 standards.
Yokohama Pneumatic Rubber Fenders Lightweight Net Type / Sling Type
DOOWIN Marine, as a leading marine equipment manufacturer, announced the production of 4×9-meter Yokohama Pneumatic Fenders.

Developed through continuous R&D, these Yokohama Pneumatic fenders meet the needs of large-scale vessels and ports. They are made of high-quality natural rubber, ensuring excellent elasticity and durability. Tested to meet the ISO 17357 standard, they offer reliable performance.

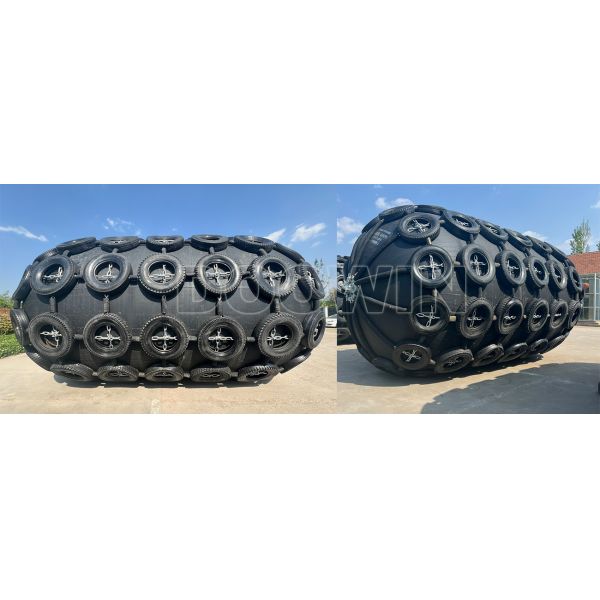

Equipped with a tire net, which consists of car/truck tires and chains, the Yokohama pneumatic fenders gain extra protection against abrasion and external forces.

Our company provides these Yokohama pneumatic fenders at competitive prices. With central stock positions, we offer fast worldwide delivery.

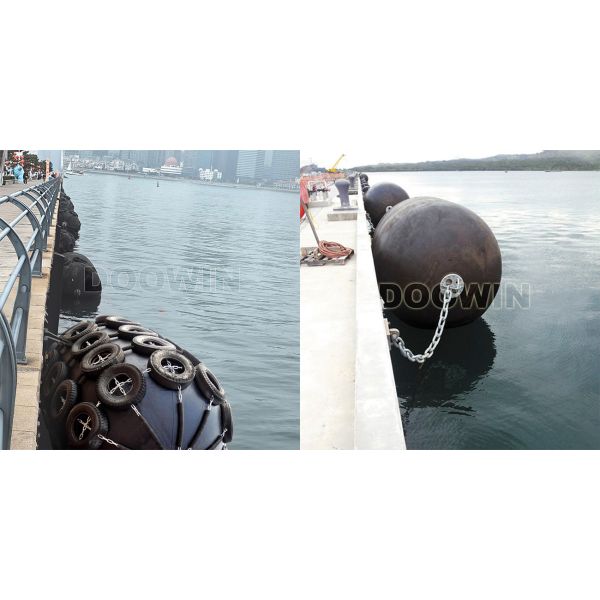

These pneumatic rubber fenders are suitable for ship-to-ship and ship-to-port applications. We’re confident they’ll contribute to the marine industry’s safety and efficiency and look forward to global partnerships.


Yokohama Pneumatic Rubber Fenders Lightweight Net Type / Sling Type

Key Features
  • Lightweight design for easy handling and installation with guy-rope or guy-chain
  • Maintains energy absorption level under inclined compression up to 15 degrees
  • Provides low and even hull pressure distribution
  • Multiple synthetic-cord layers with tough abrasion-resistant rubber for consistent performance
  • Minimized maintenance costs and damage risk
  • Self-buoyancy and long service life

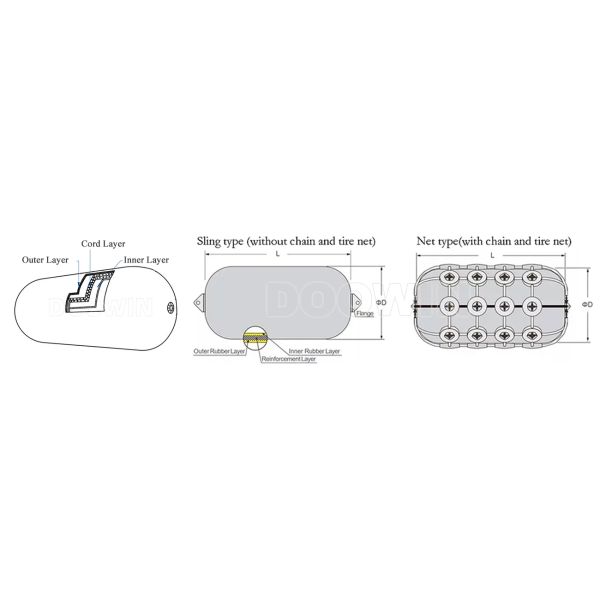

Construction Components
  • Outer Rubber: Protects cord layers and inner rubber from abrasion and external forces with excellent tensile and tear resistance
  • Tire Cord Layers: Reinforcement layer that maintains internal air pressure integrity
  • Inner Rubber: Seals the pressurized air within the fender structure
Yokohama Pneumatic Rubber Fenders Lightweight Net Type / Sling Type
Technical Specifications
Pressure Ratings:
  • Pneumatic 50 (P50): Initial internal pressure 50kPa
  • Pneumatic 80 (P80): Initial internal pressure 80kPa
Fender Types:
  • Type I - Net Type: Covered with chain net, wire net, or fiber net for small size fenders
  • Type II - Sling Type: Features lifting devices on each end for connection with guy chain or rope, without protection net
Yokohama Pneumatic Rubber Fenders Lightweight Net Type / Sling Type
Performance Data
D x L (mm) P50 GEA (kNm) P50 Reaction Force (kN) P50 Hull Pressure (kN/m²) P80 GEA (kNm) P80 Reaction Force (kN) P80 Hull Pressure (kN/m²)
500x1000 6 64 132 8 85 174
600x1000 8 74 126 11 98 166
1000x1500 32 182 122 45 239 160
1000x2000 45 257 132 63 338 174
1200x2000 63 297 126 88 390 166
1350x2500 102 427 130 142 561 170
1500x3000 153 579 132 214 761 174
1700x3000 191 639 128 267 840 168
2000x3500 208 875 128 430 1150 168
2500x4000 663 1381 137 925 1815 180
2500x5500 943 2019 148 1317 2653 195
3300x4500 1175 1884 130 1640 2476 171
3300x6500 1814 3015 146 2532 3961 179
Applications
  • Ports with extreme tidal variations

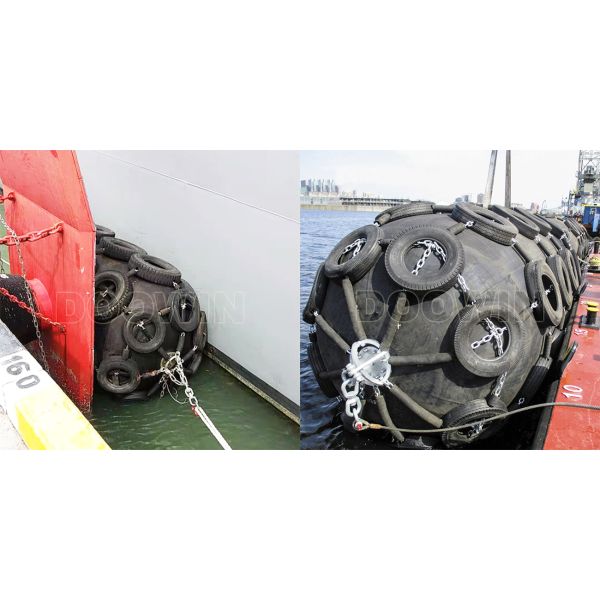

  • Ship-to-ship lightering operations
  • Oil & Gas (typically FSRU)
  • Temporary berthing
Product Advantages
  • ISO 17357:2002 Compliant: Manufactured and tested to meet international standards
  • Soft Reaction Force: Doesn't increase sharply under excess load conditions
  • 15° Inclined Berthing: Maintains energy absorption at angles up to 15 degrees
  • Shear Force Resistance: Reinforced with strong tire-cord for combined force resistance
  • Tide Adaptability: Floats freely to accommodate tidal range and ship movement
  • Low Maintenance: Minimal air leakage requires only annual pressure checks
  • Cost Effective: Simple installation and low maintenance requirements

Note: Floating pneumatic rubber fenders are sometimes referred to as "Yokohama Fenders" or "Yokohama type fenders" - ISO 17357:2002 Ships and marine technology -- High-pressure floating pneumatic rubber fenders.
